Waveshare 2 Channel Can FD Expansion Hat for Raspberry Pi Supports Can with Flexible Data Rate Multi Onboard Protection Circuits

Marque: Waveshare
Nom de modèle: 2-Channel Isolated CAN FD Expansion HAT for Raspberry Pi
Technologie de connectivité: CAN
Composants inclus: development resources and manual
Système d'exploitation: Raspberry Pi OS
Fabricant de CPU: ARM
Appareils compatibles: Jetson Nano, STM32/Arduino, Raspberry Pi Series Board
Technologie de mémoire RAM: LPDDR4
Nombre de processeurs: 1
Total de ports USB: 4

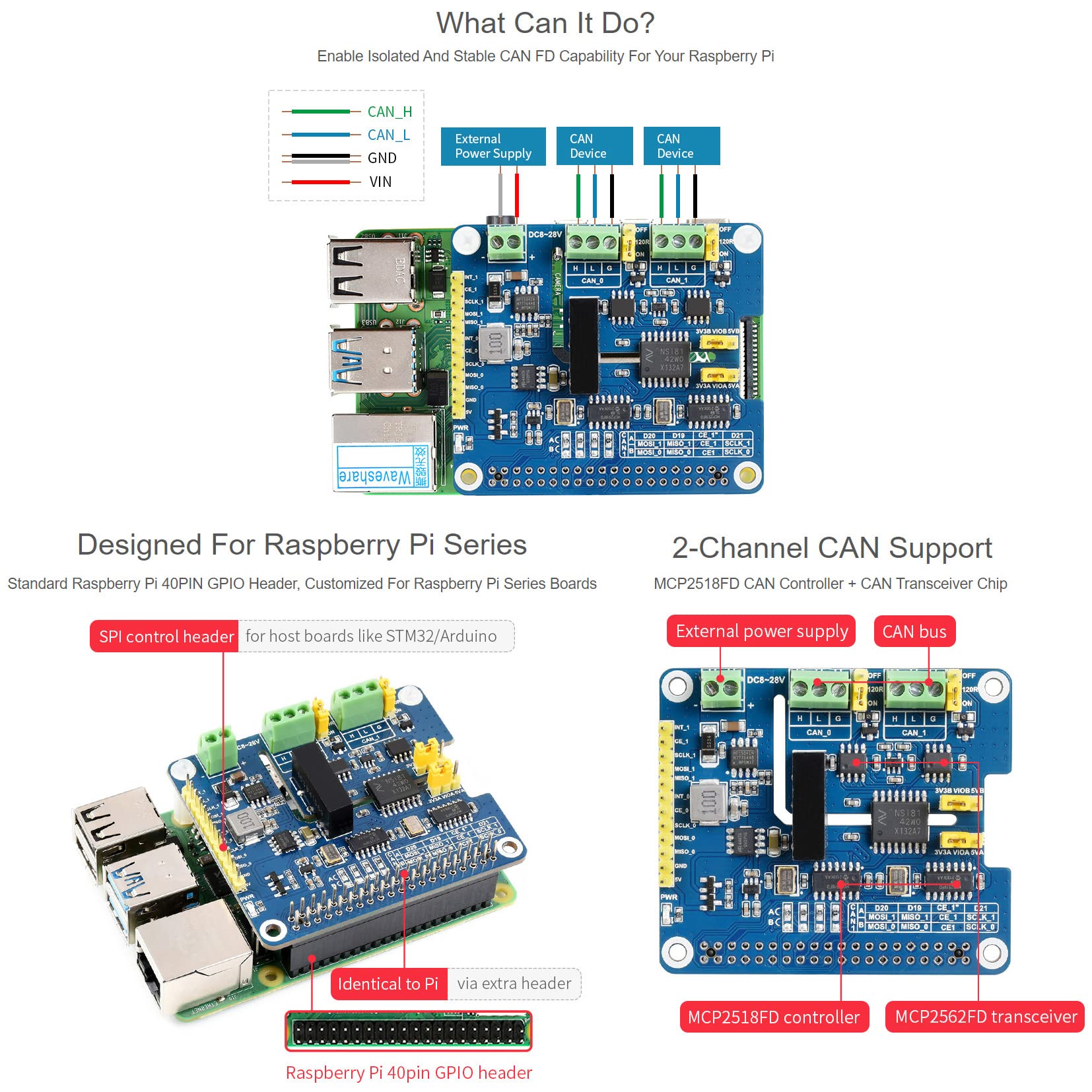

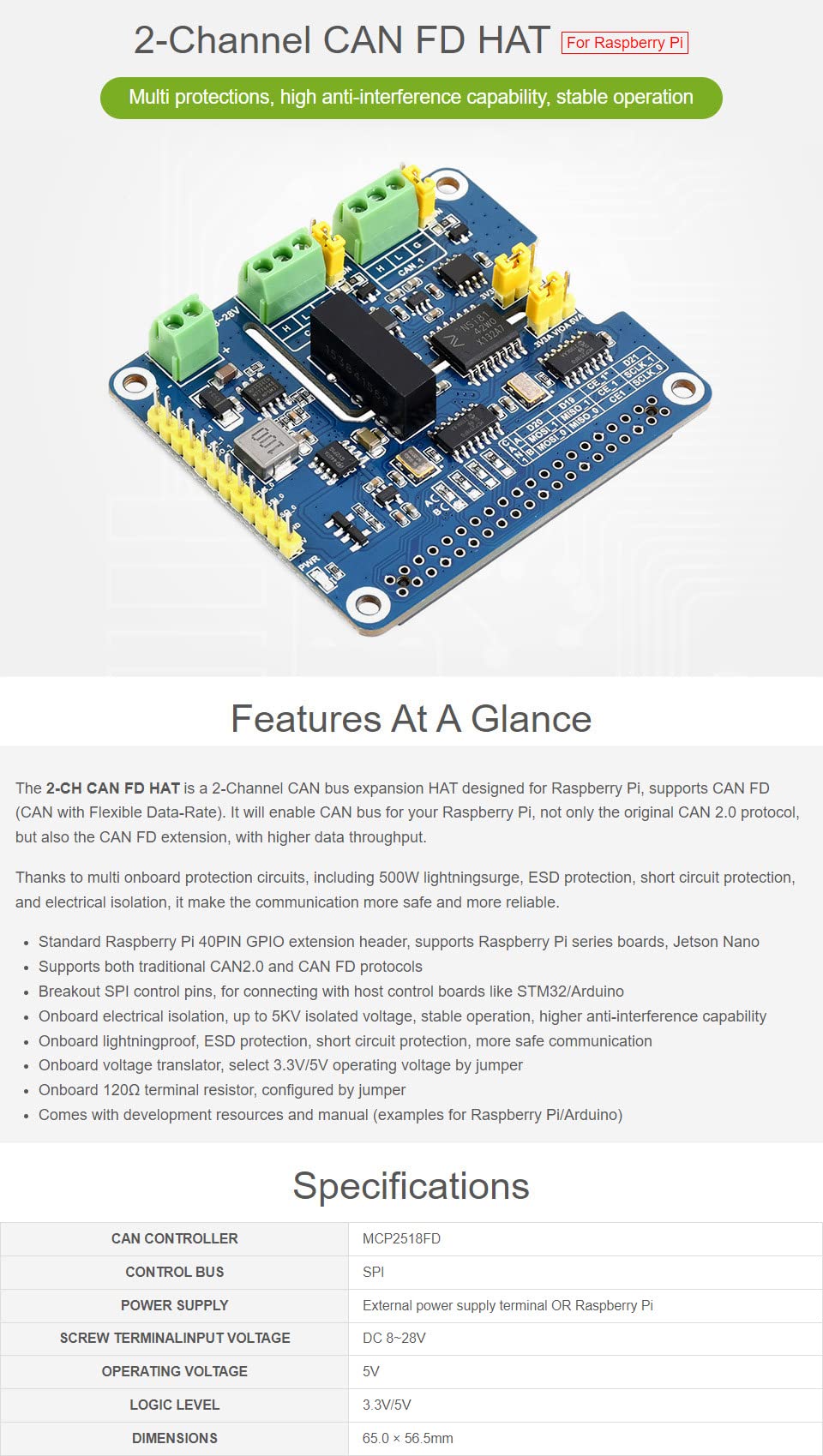

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports both traditional CAN2.0 and CAN FD protocols
- Breakout SPI control pins, for connecting with host control boards like STM32
- Onboard lightningproof, ESD protection, short circuit protection, more safe communication Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120Ω terminal resistor, configured by jumper Comes with development resources and manual (examples for Raspberry Pi)
- Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
