Waveshare ESP32-S3 4.3inch Capacitive 5Point Touch Display Development Board, 800x480, 32Bit LX7 2-Core Processor, 240MHz, Support WiFi, Onboard Antenna, Suitable for ESPHome/Home Assistant Project

Marque: Waveshare
Nom de modèle: ESP32-S3 Development Board 4.3-inch Capacitive Touch Screen LX7 Wifi Bluetooth
Taille de la mémoire RAM installée: 512 Ko
Capacité de stockage mémoire: 8 MB
Vitesse du CPU: 2.4E+2 MHz
Technologie de connectivité: USB
Composants inclus: Carte avec écran tactile capacitif de 4,3", antenne intégrée, et interfaces pour CAN, RS485, I2C, et fente pour carte TFVoir plus
Système d'exploitation: Linux
Fabricant de CPU: Espressif
Norme de communication sans fil: 802.11b

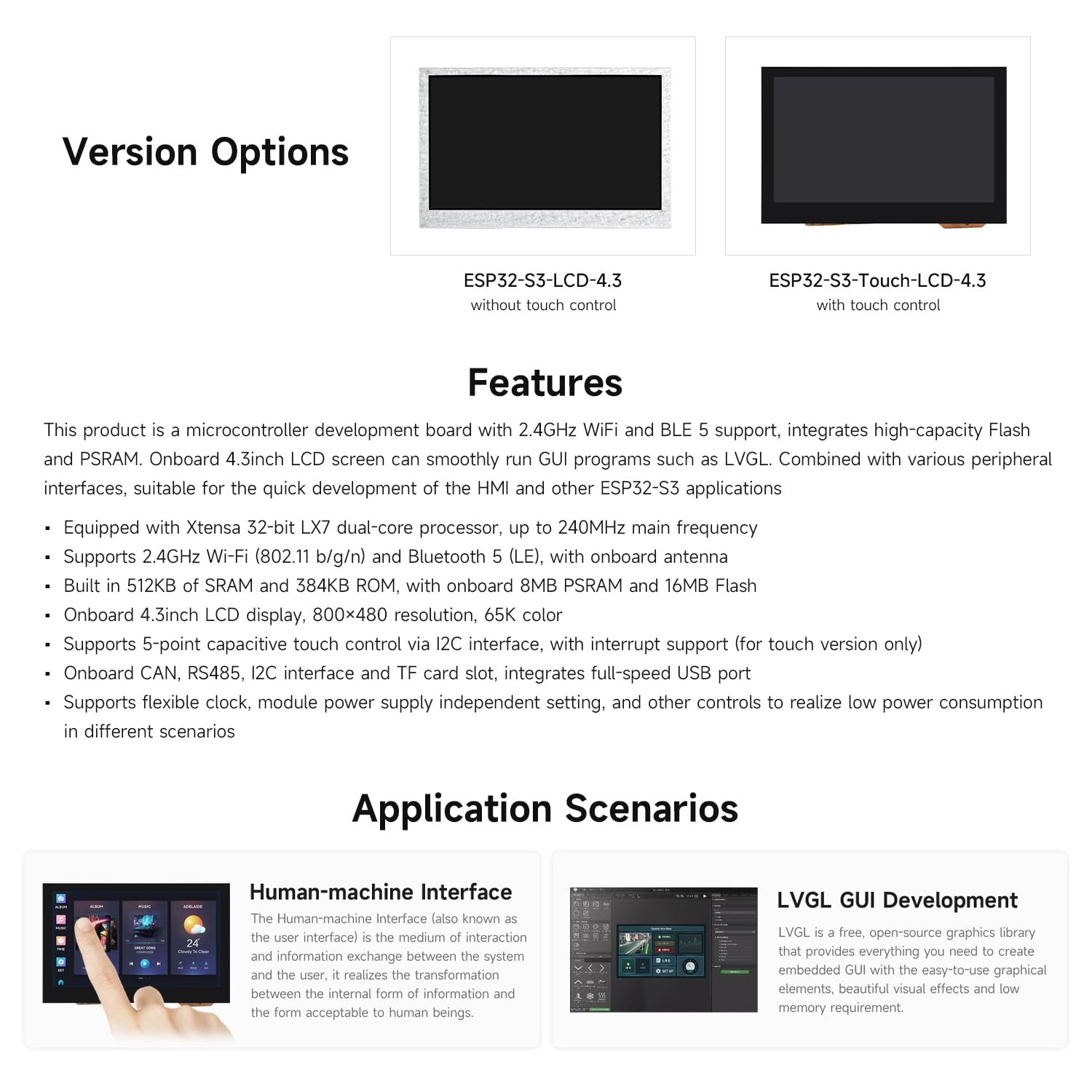

- ESP32-S3-Touch-LCD-4.3 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch capacitive touch screen can smoothly run GUI programs such as LVGL
- Supports capacitive touch control via I2C interface, 5-point touch with interrupt support. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT5 BLE, with onboard antenna

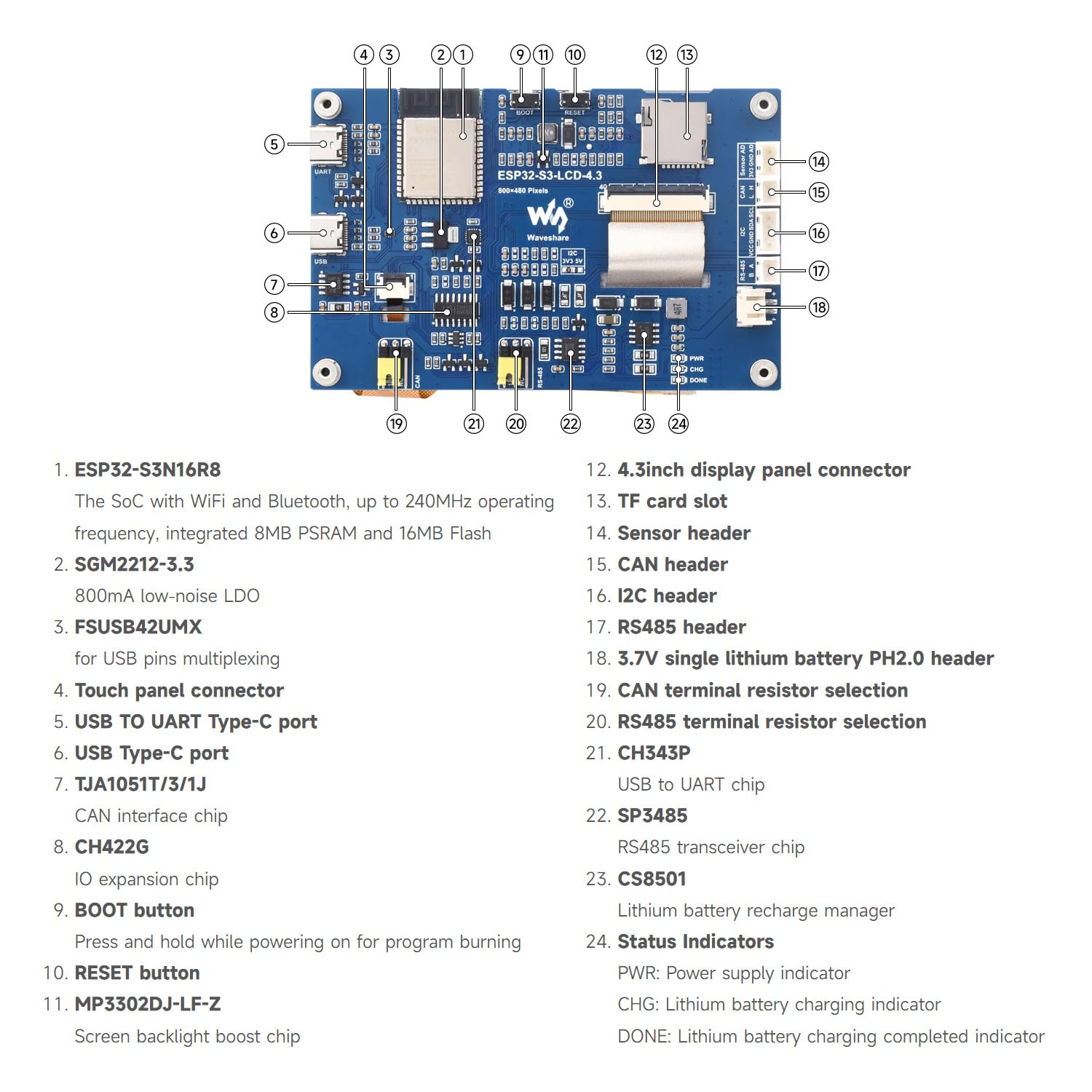

- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash. Onboard 4.3inch capacitive touch display, 800×480 resolution, 65K color. Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
