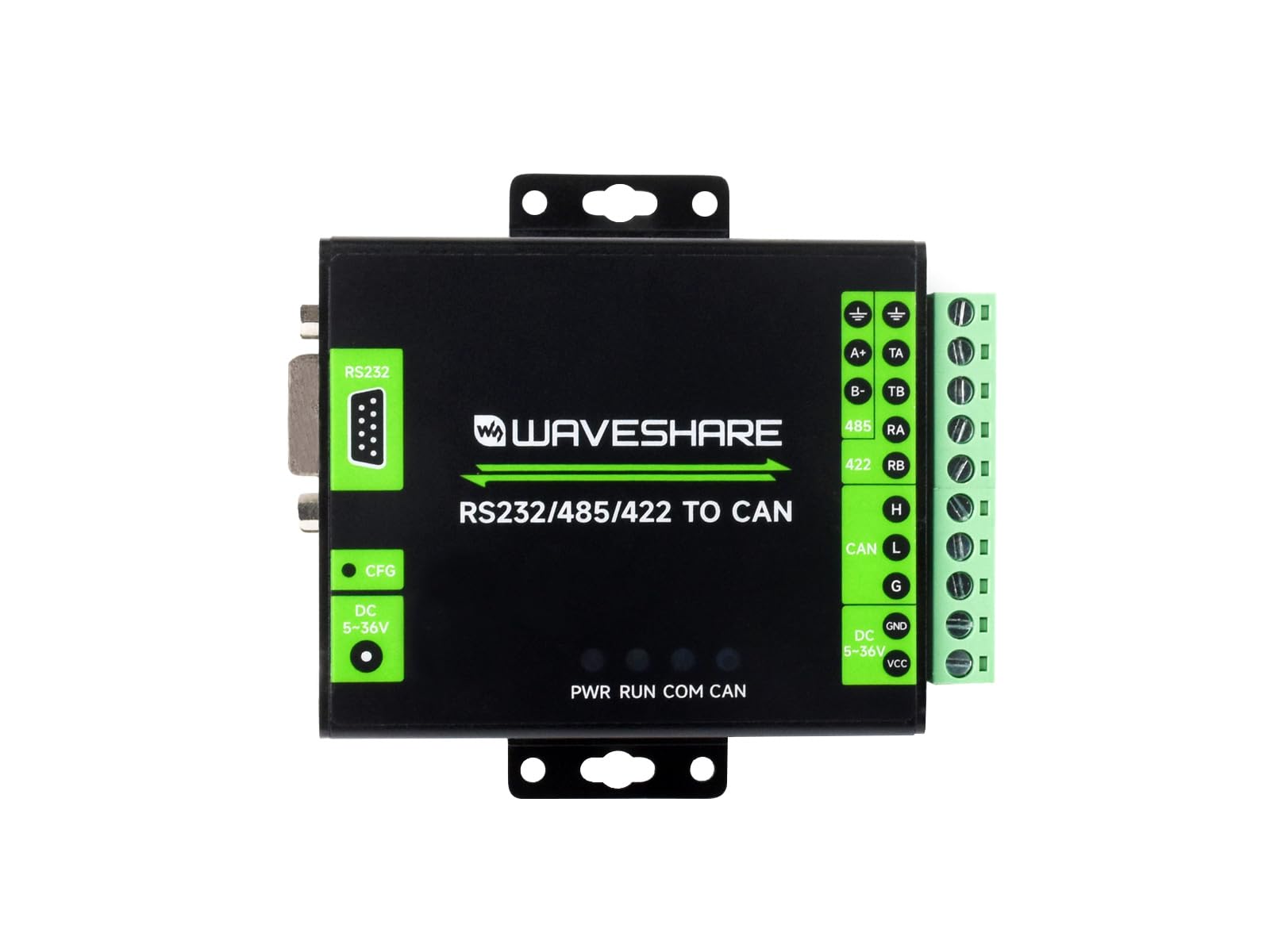

Waveshare RS232/485/422 to Can Industrial Isolated Converter, Supports Modbus RTU Conversion, Multiple Protection Circuits

Marque: Waveshare
Tension d'alimentation maximale: 36 Volts (courant continu)
Tension d'alimentation minimale: 5 Volts (courant continu)
Type de fixation: Montage mural, Montage sur rail DIN
Appareils compatibles: Imprimantes, Instruments de musique, Ordinateur
Nombre d'unités: 1.0 unité
Fabricant: Waveshare

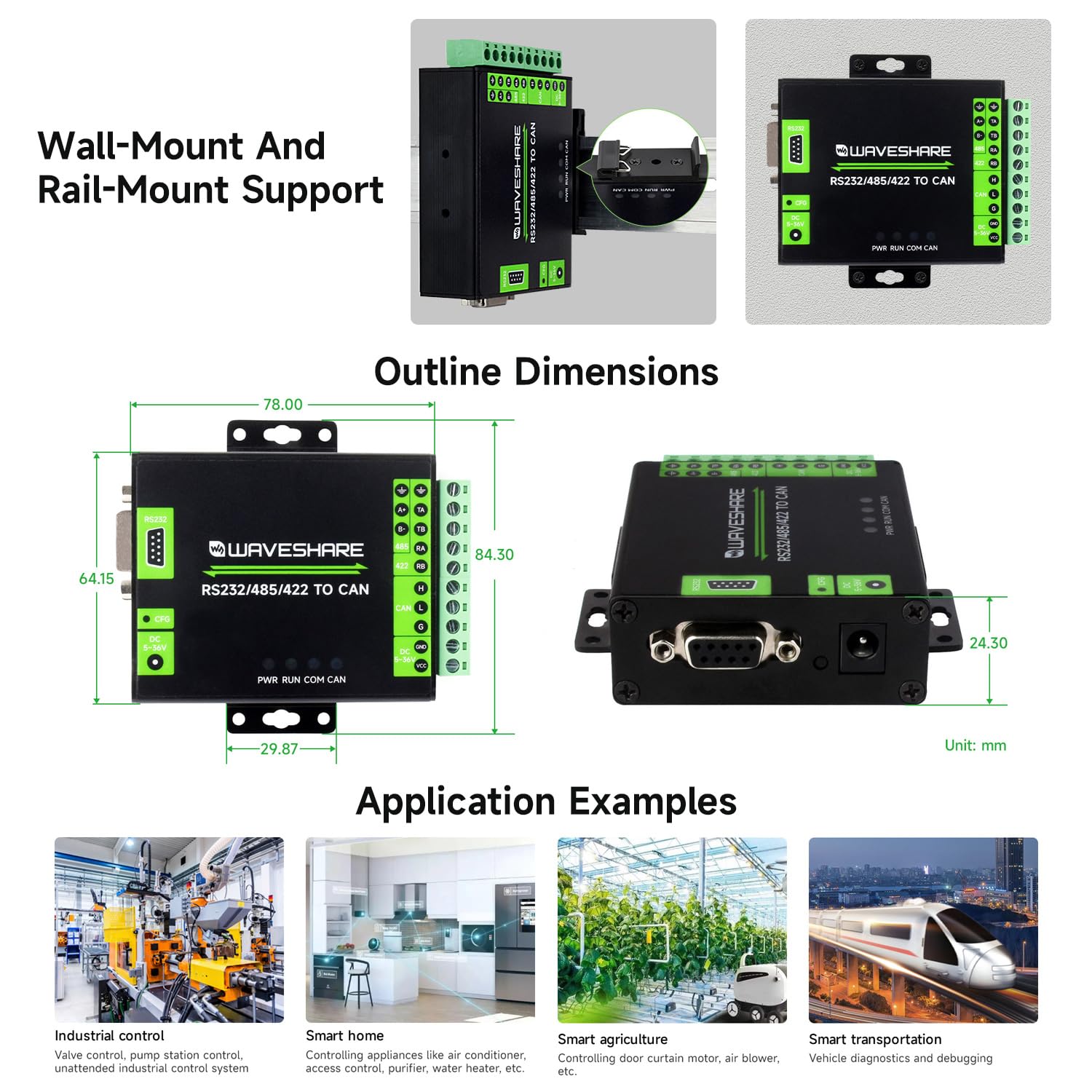

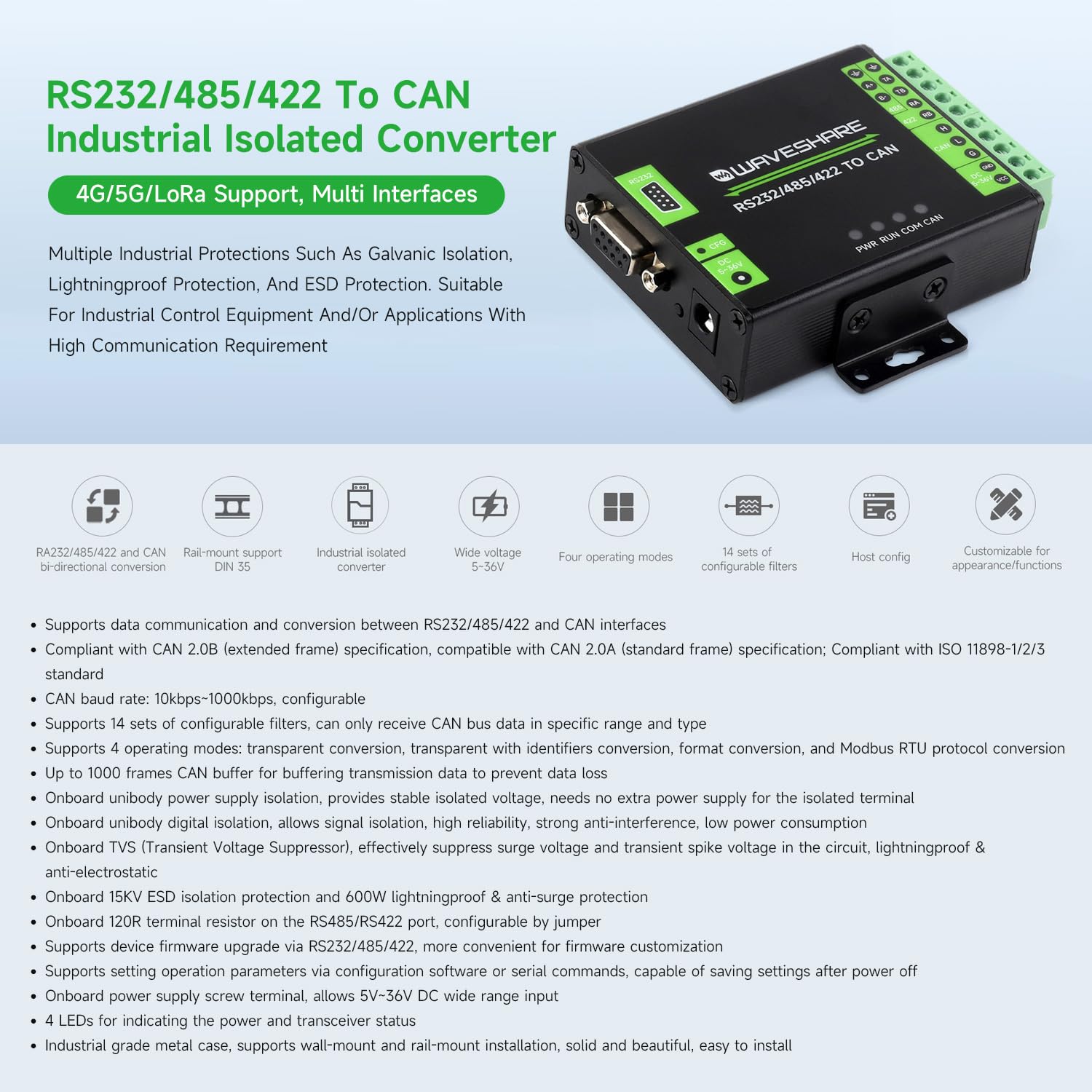

- Supports data communication and conversion between RS232/485/422 and CAN interfaces. Compliant with CAN 2.0B (extended frame) specification, compatible with CAN 2.0A (standard frame) specification; Compliant with ISO 11898-1/2/3 standard.CAN baud rate: 10kbps~1000kbps, configurable.Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install

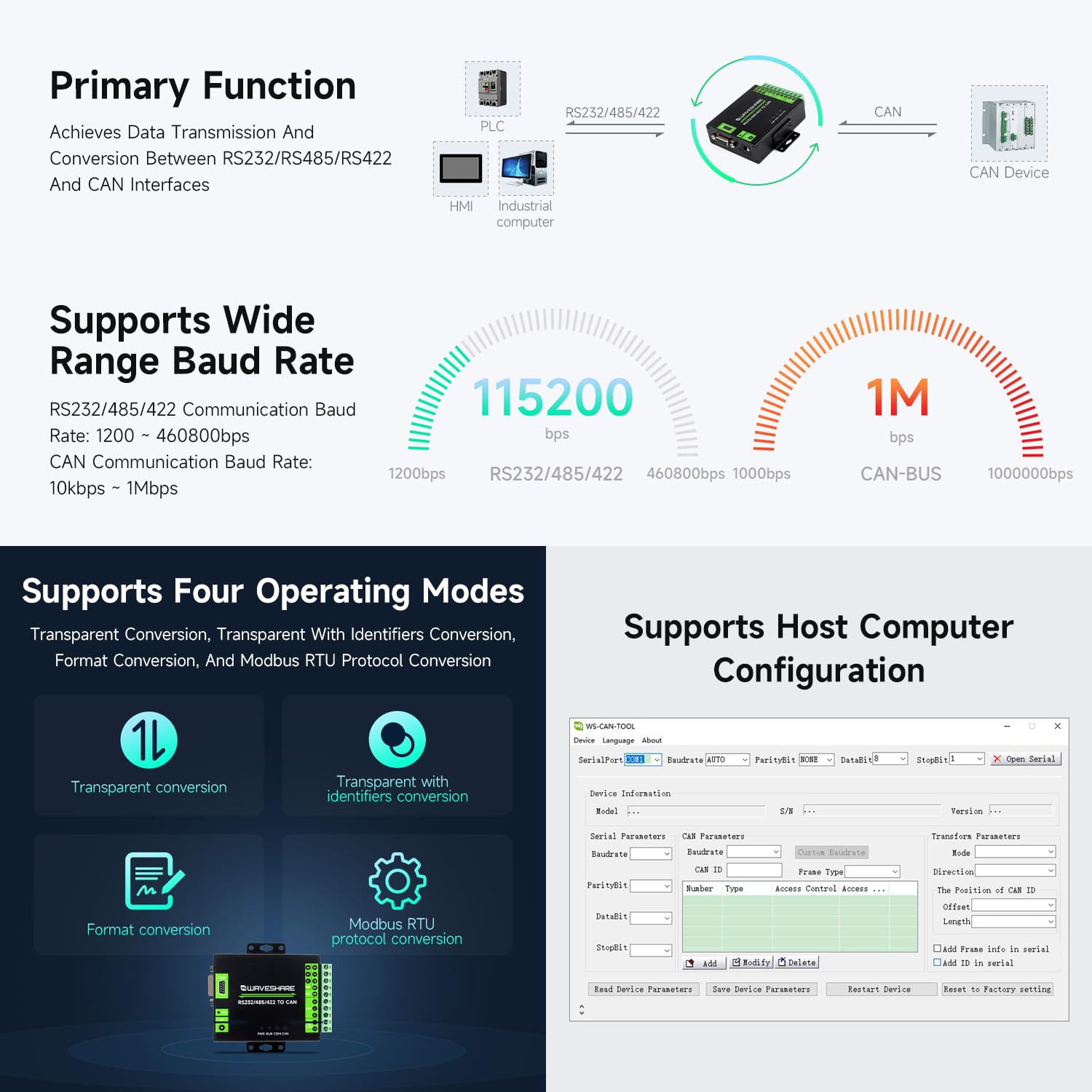

- Supports 14 sets of configurable filters, can only receive CAN bus data in specific range and type. Supports 4 operating modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion. Up to 1000 frames CAN buffer for buffering transmission data to prevent data loss

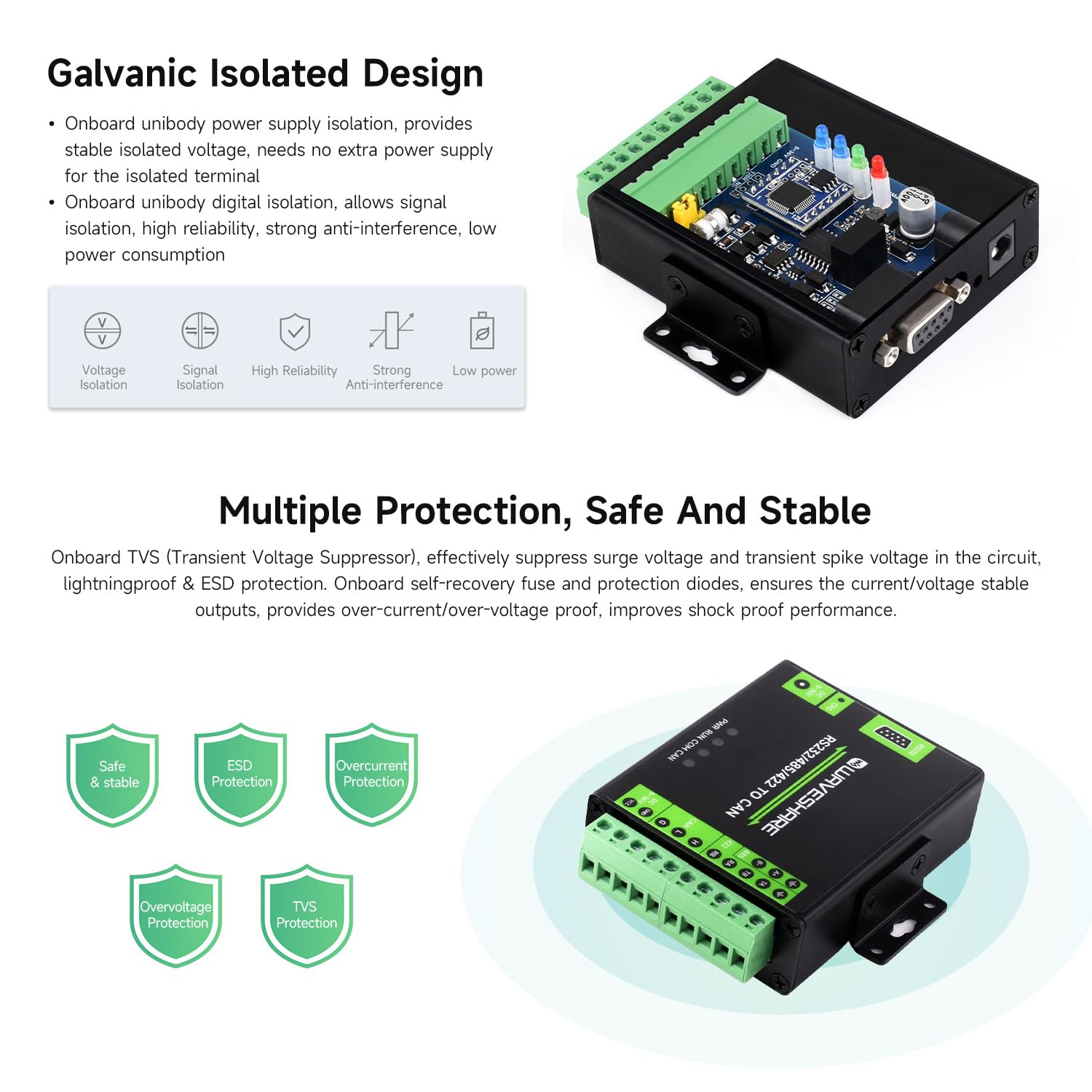

- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection. Onboard 120R terminal resistor on the RS485/RS422 port, configurable by jumper. Onboard power supply screw terminal, allows 5V~36V DC wide range input
- Supports device firmware upgrade via RS232/485/422, more convenient for firmware customization. Supports setting operation parameters via configuration software or serial commands, capable of saving settings after power off.4 LEDs for indicating the power and transceiver status
